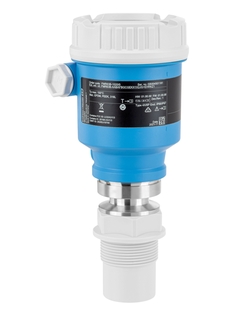

FMR66B雷达料位计

应用领域

Micropilot FMR66B是新一代80 GHz雷达物位计的家族成员。在基本固体测量中连续进行非接触式料位测量。内置操作向导，引导用户轻松执行仪表的调试、功能安全及验证测试操作，操作非常便捷。小信号波束角，特别适合安装在狭窄料仓中的测量。采用Heartbeat Technology心跳技术，支持仪表在线自校验和自监测，及时识别异常工况，提升了过程安全性，提高了生产效率。

优势

• 人机界面直观明了，提供引导式仪表调试和验证向导，操作简单

• 显示屏上显示推荐操作，帮助用户轻松排除故障

• 安全设计理念，遵循IEC 61508标准研发

• 采用Heartbeat Technology心跳技术，支持仪表在线自监测、自校验和自诊断，提高生产力

• 仪表采用数字通信，轻松集成至资产管理系统中

产品规格参数

• 测量原理

  固体物位雷达

• 特点/应用

  For simple applications:
  Reliable, non-contact measurement of levels
  in silos or storage tanks for bulk solids

• 特点

  Heartbeat Verification + Monitoring, Bluetooth® Commissioning,
  operation and maintenance with SmartBlue App,
  HistoROM, RFID TAG for easy identification

• 电源/通信

  2-wire (HART/ PROFIBUS PA)
  PROFINET with Ethernet-APL
  Bluetooth® wireless technology

• 频率

  W-Band (~80 GHz)

• 天线

  1-1/2" / 40mm encapsulated, PVDF
  2" / 50mm Drip-off, PTFE

• 测量精度

  +/- 3 mm (0.12 in)

• 环境温度

  -40 … +85 °C (-40 … +185 °F)

• 过程温度

  -40 … +130 °C (-40 … +266 °F)

• 过程压力（绝压）/最大过压限定值

  Vacuum...16 bar (232 psi)

• 主要接液部件

  PVDF or PTFE

• 过程连接

  Thread:
  G1-1/2", MNPT1-1/2"
  Flange:
  UNI DN80...DN150
  Mounting bracket

• 最大测量距离

  50 m (164 ft)

• 通信

  4...20 mA HART
  Additional analog or switch output
  PROFIBUS PA
  PROFINET with Ethernet-APL
  Bluetooth® wireless
  technology and app (optional)

• 证书和认证

  IEC Ex, ATEX, CSA C/US, EAC Ex, JPN Ex,
  KC Ex, INMETRO Ex, NEPSI Ex, UK Ex

• 安全认证

  SIL

• 设计认证

  Declaration of Conformity ASME B31.3;
  CRN approval

• 卫生型认证

  EU Food Contact Material (EC) 1935/2004
  US Food Contact Material FDA CFR 21

• 船级认证

  ABS, LR, BV, RINA, DNV

• 选项

  Display, Customized settings,
  App 'SmartBlue' for commissioning and operation via Bluetooth
  Heartbeat for batch detection; Gas-tight implementation;
  Overvoltage protection; PWIS free

• 应用限制

  DK < 1.6
  Reduction of the max. possible measuring range due to:
  Media with poor reflective properties cone of repose
  extremely loose surface of bulk solids, e.g. bulk solids with a
  low bulk density during pneumatic filling buildup, especially of
  moist products.
  Alternative for these applications: FMR67B
